Details
LED Display JS-DSP-A2 Series Malaysia | Indoor LED Wall with Superb Colour Performance
The JS-DSP-A2 Series LED Display offers Indoor LED Wall Malaysia solutions with ultra-wide color gamut, modular design, and high refresh rate—ideal for retail, exhibitions, and brand spaces across KL, Selangor, West Malaysia, and East Malaysia.
The JS-DSP-A2 Series LED Display is built for environments where visual quality and color accuracy matter most. Featuring an ultra-wide color gamut and superb colour performance, this series enhances brand storytelling through vibrant and lifelike visuals. Whether installed in a brand centre, museum, or retail store, it creates immersive experiences that attract attention and elevate engagement.
With pixel pitch options from P1.25 to P2.5, the JS-DSP-A2 Series provides flexibility for different viewing distances and budget levels. While finer pixel pitches deliver sharper visuals for close viewing, larger pitches are more cost-efficient for wider spaces. This balanced offering makes it a practical LED display Malaysia solution for businesses looking to optimize both performance and investment.
Key Features of JS-DSP-A2 Series LED Display
Engineered for flexibility and performance, this indoor LED display supports a wide range of commercial applications.
Product Highlights:
- Ultra Wide Color Gamut for richer and more accurate visuals
- Modular Design & High Integration for easy installation and maintenance
- Simplified Connection System for faster deployment
- High Refresh Rate (3840Hz–7680Hz) for smooth display output
- Dustproof, Moisture-Proof & Anti-Static Protection
- Strong Compression Resistance for durability
These features make it suitable for high-traffic environments where both performance and reliability are essential.
Ideal Applications for Indoor LED Display
The JS-DSP-A2 Series is designed for visually impactful environments.
Suitable For:
- Brand Centres & Showrooms
- Museums & Exhibition Centres
- Retail Stores & Shopping Malls
- Meeting Rooms & Corporate Spaces
- Artistic & Creative Installations
Its wide viewing angle (≥160°) ensures consistent image quality from multiple perspectives, making it ideal for public-facing displays.
Technical Specifications Overview
| Parameter | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
|---|---|---|---|---|---|
| Pixel Density (pixel/m²) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Size | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm |
| Module Resolution | 512 × 384 | 416 × 312 | 344 × 258 | 160 × 80 | 128 × 64 |
| Cabinet Size | 640 × 480 mm | 640 × 480 mm | 640 × 480 mm | 640 × 480 mm | 640 × 480 mm |
| Brightness | ≥ 600 nits | ≥ 600 nits | ≥ 600 nits | ≥ 600 nits | ≥ 600 nits |
| Refresh Rate | 3840Hz – 7680Hz | 3840Hz – 7680Hz | 3840Hz – 7680Hz | 3840Hz – 7680Hz | 3840Hz – 7680Hz |
| Viewing Angle (H/V) | ≥ 160° | ≥ 160° | ≥ 160° | ≥ 160° | ≥ 160° |
| Control System | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Power Supply | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz | AC 100–240V, 50/60Hz |
| IP Rating (Front/Back) | IP40 | IP40 | IP40 | IP40 | IP40 |
| Working Temperature | -10°C ~ +40°C | -10°C ~ +40°C | -10°C ~ +40°C | -10°C ~ +40°C | -10°C ~ +40°C |
Transform Your Space with LED Display
Enhance your brand visibility with the JS-DSP-A2 Series LED Display from Fifth Tech Computer Solutions. From KL to nationwide Malaysia, we provide complete LED wall solutions, including consultation, installation, and support. Contact us today to get a customized indoor LED display tailored to your business needs.

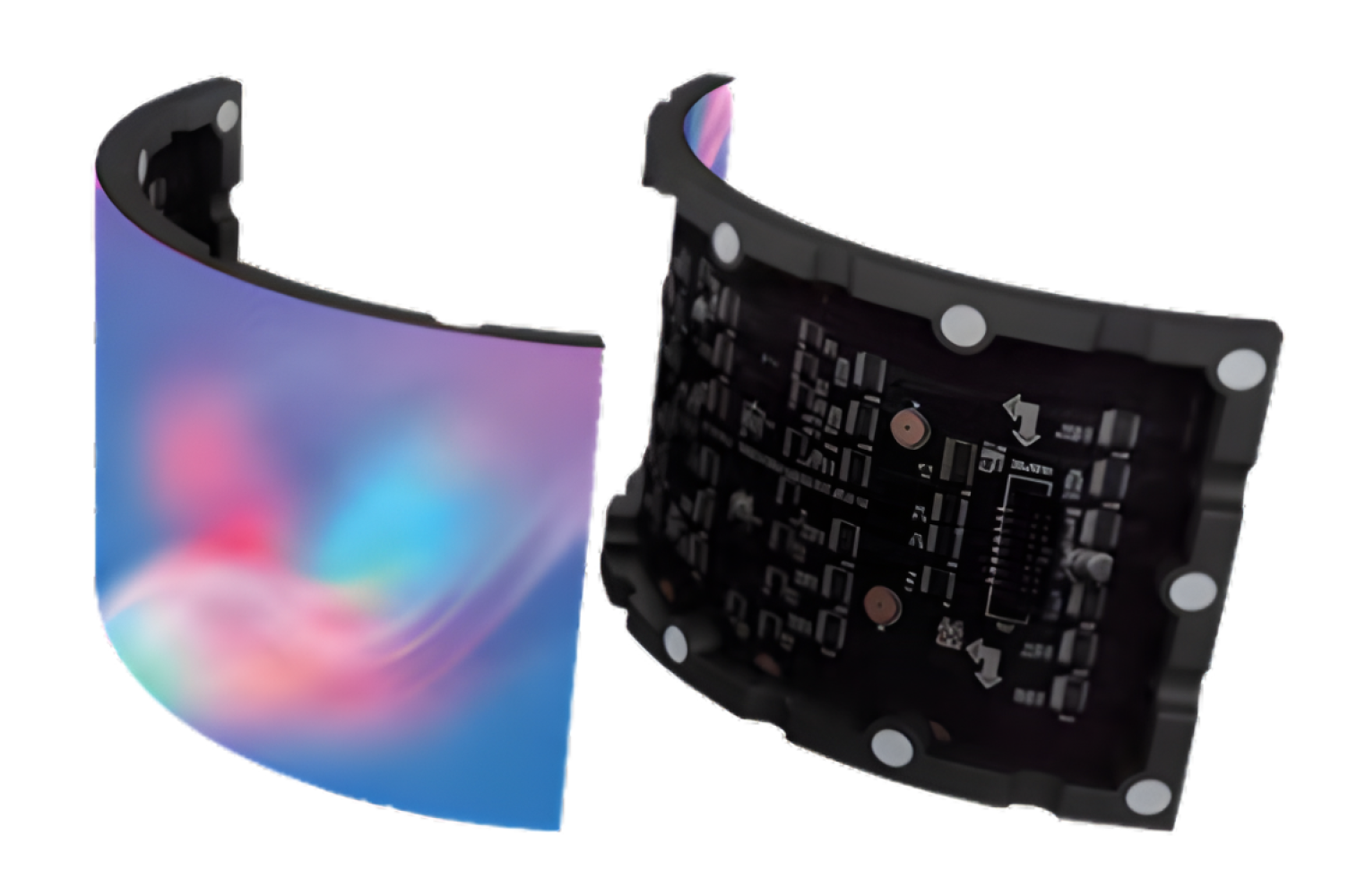

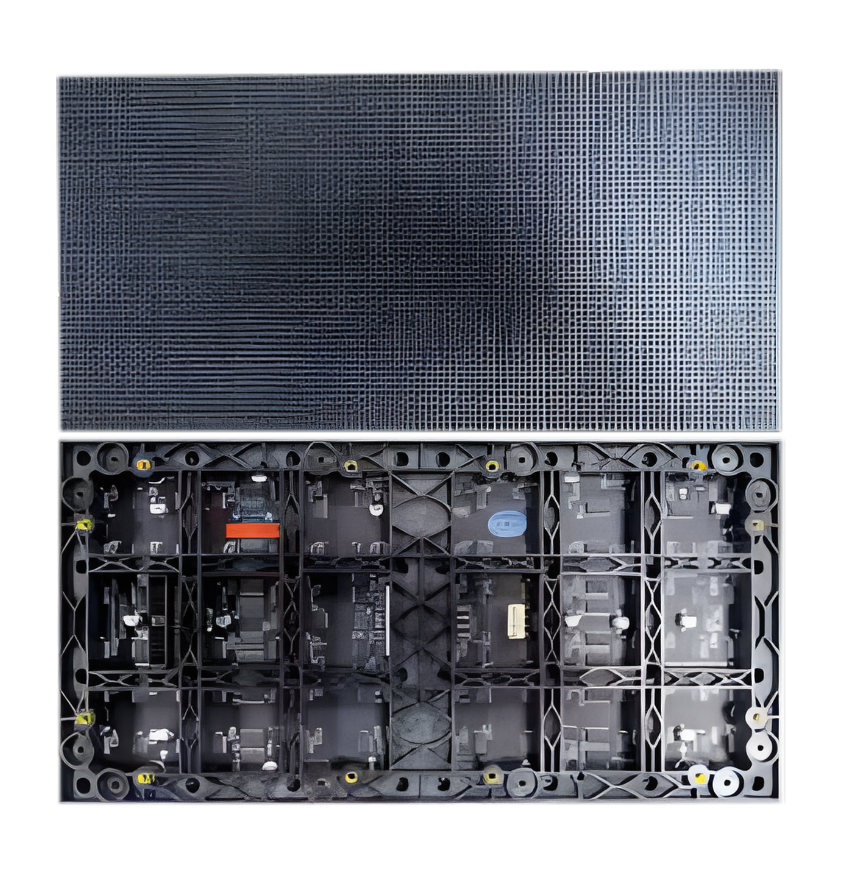

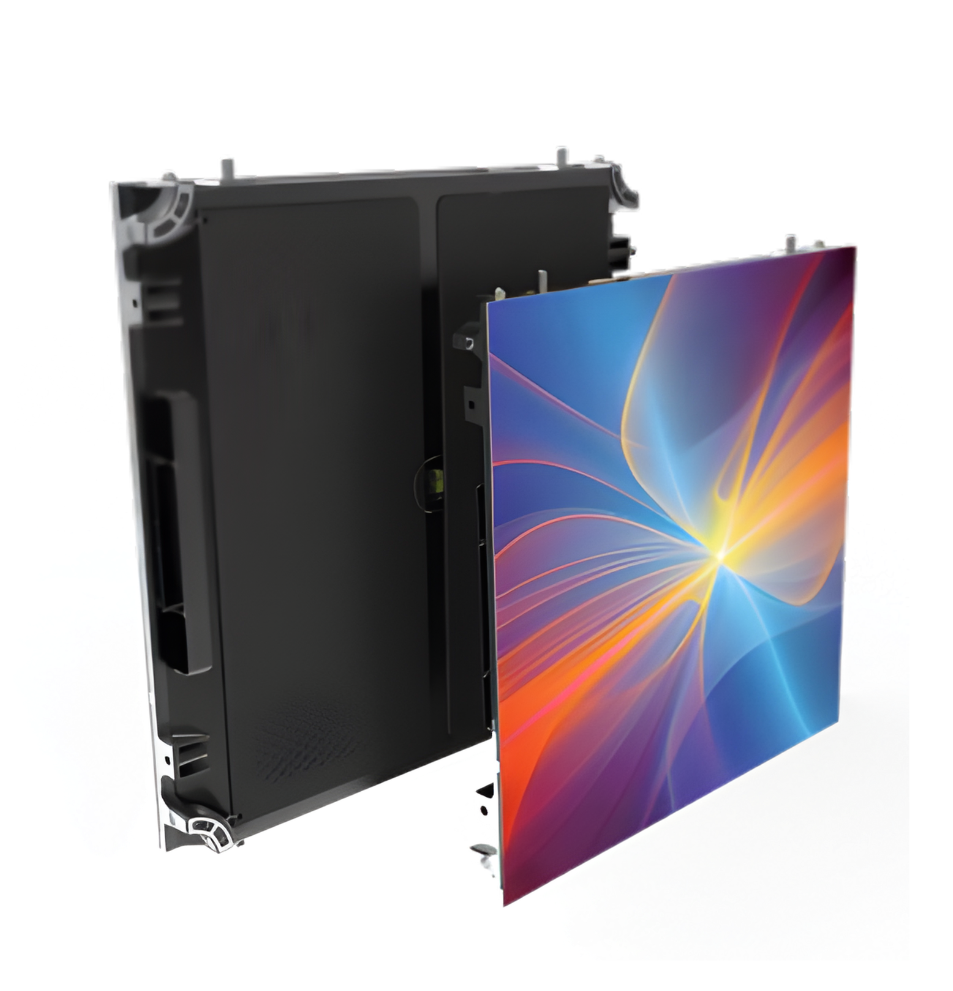

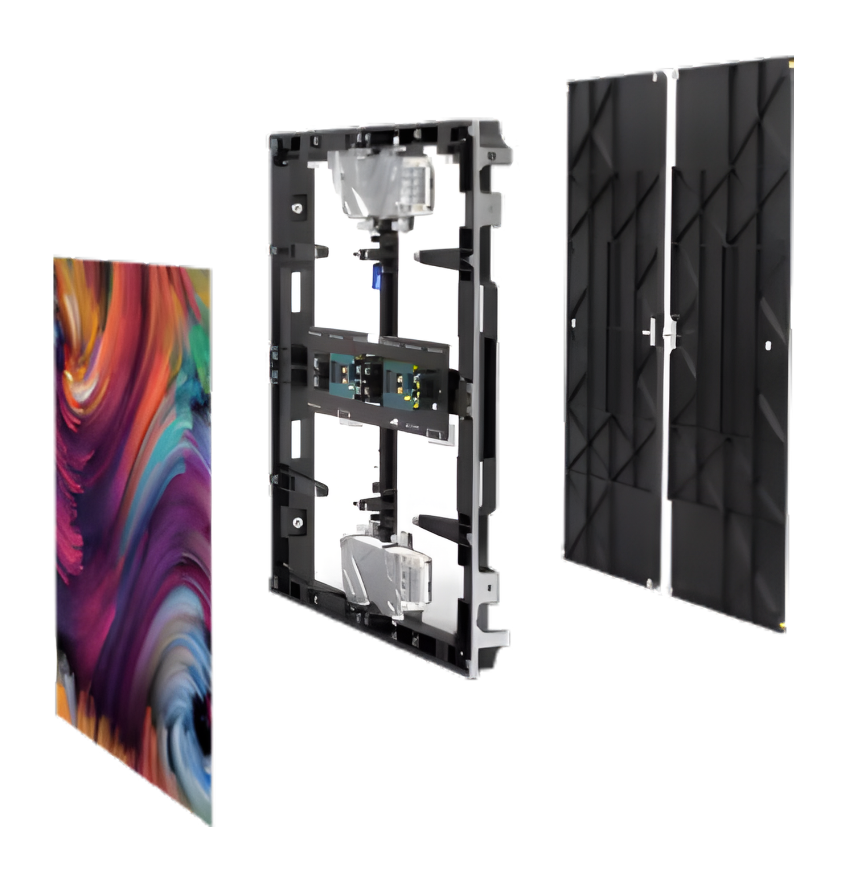

JS-DSP-A2 Series Gallery
_(3).png)
_(1).png)
View more about LED Display JS-DSP-A2 Series on main site
